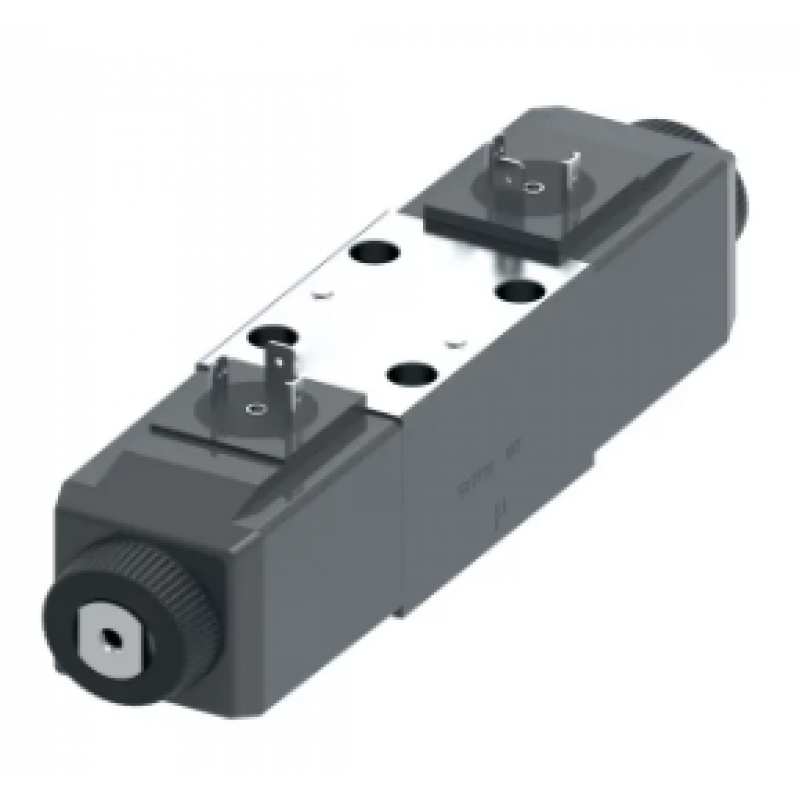

Solenoid operated DG4V-3-6C-M-U-H7-60

Solenoid operated DG4V-3-6C-M-U-H7-60
Solenoid operated DG4V-3-6C-M-U-H7-60
  • MODEL: DG4V-3-6C-M-U-H7-60
  • LEAD TIME: in stock
$92.24
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

Product specifications

Characteristic
Value
Actuation typeSolenoid operated
BrandVickers by Danfoss
Coil rating24 VDC
Design series60 Series
Electrical connectionISO 4400 (Din 43650) connector
Energ/de-energ time45-28 ms
Flow rate upto GPM21.0
Flow rate upto LPM80.0
Fluid cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator lightNo
InterfaceISO4401-03
Manual overridePlain
Model codeDG4V36CMUH760
PerformanceHigh performance
Power consumption30 watt
Pressure rating BAR350
Pressure rating PSI5000
Seal typeViton
Solenoid energising identityStandard as per ANSI B93 9
Special featuresNone
Spool position monitorNo
Spool typeSpool 6
Spring arrangementSpring centred
StageSingle stage
Surge suppressor damperNo
Tank port rating BAR210
Tank port rating PSI3000
Valve mount typeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
Tags: HDL-NS24080204
