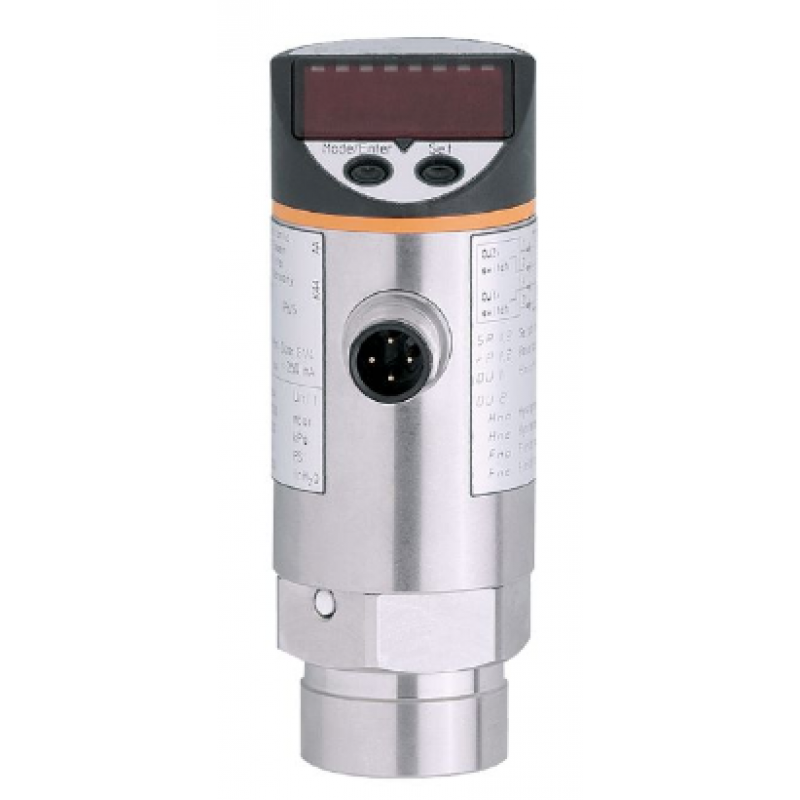

Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
| Measuring range | | 0...250 bar | 0...3625 psi | 0...25 MPa |
|
|---|
| Process connection | threaded connection G 1/4 Internal thread |
|---|
Application
| System | gold-plated contacts |
|---|
| Application | for industrial applications |
|---|
| Media | liquids and gases |
|---|
| Conditionally suitable for | use in gases at pressures > 25 bar only on request |
|---|
| Medium temperature [°C] | -25...80 |
|---|
| Min. bursting pressure | |
|---|
| Pressure rating | |
|---|
| Type of pressure | relative pressure |
|---|
Electrical data
| Operating voltage [V] | 18...36 DC; (to SELV/PELV) |
|---|
| Current consumption [mA] | < 50 |
|---|
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
|---|
| Protection class | III |
|---|
| Reverse polarity protection | yes |
|---|
| Overvoltage protection | yes; (< 40 V) |
|---|
| Power-on delay time [s] | 0.3 |
|---|
| Integrated watchdog | yes |
|---|
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|
| Output signal | switching signal |
|---|
| Electrical design | PNP |
|---|
| Number of digital outputs | 1 |
|---|
| Output function | normally open / closed; (configurable) |
|---|
| Max. voltage drop switching output DC [V] | 2 |
|---|
| Permanent current rating of switching output DC [mA] | 250 |
|---|
| Switching frequency DC [Hz] | < 170 |
|---|
| Short-circuit protection | yes |
|---|
| Type of short-circuit protection | yes (non-latching) |
|---|
Measuring/setting range
| Measuring range | | 0...250 bar | 0...3625 psi | 0...25 MPa |
|
|---|
| Set point SP | | 2...250 bar | 40...3620 psi | 0.2...25 MPa |
|
|---|
| Reset point rP | | 1...249 bar | 20...3600 psi | 0.1...24.9 MPa |
|
|---|
| In steps of | |
|---|
| Factory setting | |
|---|
Accuracy / deviations
| Switch point accuracy [% of the span] | < ± 0,5 |
|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
|---|
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
|---|
| Hysteresis deviation [% of the span] | < ± 0,25 |
|---|
| Long-term stability [% of the span] | < ± 0,05; (per 6 months) |
|---|
| Temperature coefficient zero point [% of the span / 10 K] | 0,2; (0...80 °C) |
|---|
| Temperature coefficient span [% of the span / 10 K] | 0,2; (0...80 °C) |
|---|
Reaction times
| Delay time programmable dS, dr [s] | 0; 0,2...50 |
|---|
Software / programming
| Parameter setting options | hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display unit |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
| Storage temperature [°C] | -40...100 |
|---|
| Protection | IP 67 |
|---|
Tests / approvals
| EMC | | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 0,5/1 kV | | EN 61000-4-6 HF conducted | 10 V |
|
|---|
| Shock resistance | | DIN IEC 68-2-27 | 50 g (11 ms) |
|
|---|
| Vibration resistance | | DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
|
|---|
Mechanical data
| Weight [g] | 261.6 |
|---|
| Material | stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM |
|---|
| Materials (wetted parts) | stainless steel (1.4305 / 303); ceramics; FKM |
|---|
| Min. pressure cycles | 100 million |
|---|
| Process connection | threaded connection G 1/4 Internal thread |
|---|
Displays / operating elements
| Display | | Display unit | 3 x LED, green | | Switching status | LED, yellow | | Function display | alphanumeric display, 4-digit | | Measured values | alphanumeric display, 4-digit |
|
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
