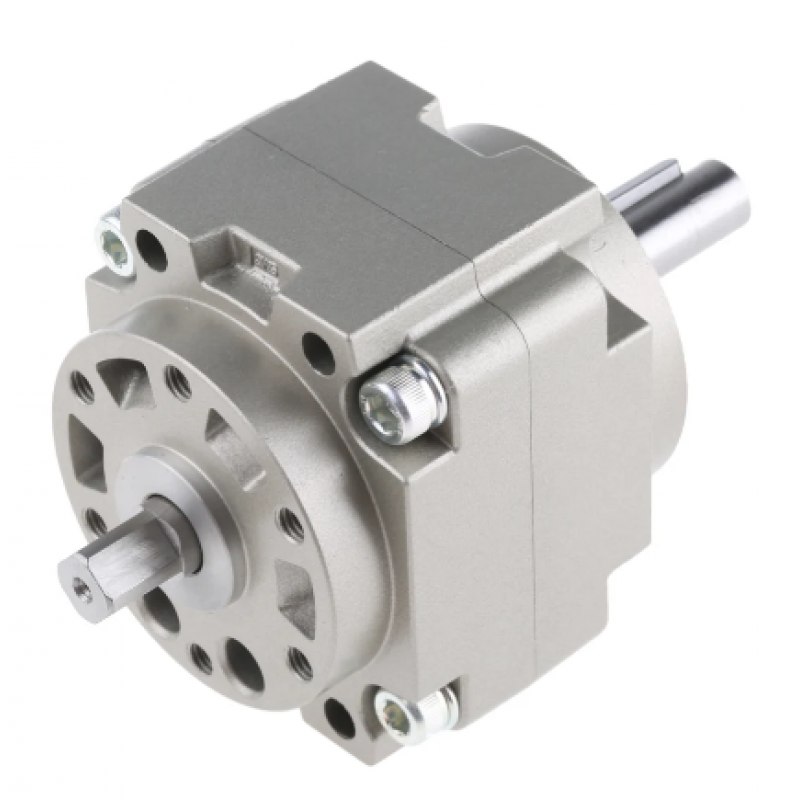

[Features]
· Works with the model D-M9□ compact auto switch.
· Highly reliable.
· Supports thrust and radial loads and uses bearings.
· The body can be mounted directly.
· 2 types of port location; side ported or axial ported.
| Oscillation Angle A | [90°] 90° | Torque (Range)(N⋅m) | 10 to Less than 20 |
|---|
| Type | Rotary Actuator Both Sides Shaft Outputs | Main Body Shape | Round Shape |
|---|
| Operation Method | Single Vane | Rigidity Accuracy | Standard |
|---|
| Environment, Applications | Standard | Allowable Kinetic Energy (Range)(J) | 0.005 to Less than 0.01 |
|---|
| Tube Nominal Diameter | 50 | Valves | Not Provided |
|---|
| Allowable Kinetic Energy(J) | 0.082 | Operating Pressure Range(MPa) | 0.15～1 |
|---|
