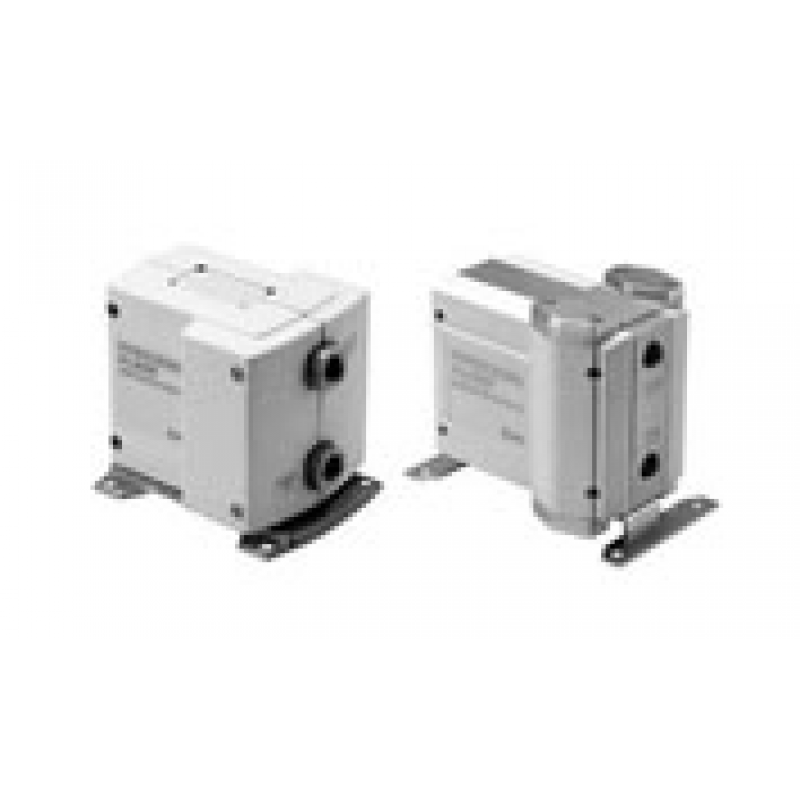

●Now with compact / energy saving / high-dispense-volume body material
polypropylene (PP)
●Compact: Height 185 mm x Width 134 mm x Depth 202 mm
●Lightweight: 3.0 kg (Polypropylene)
●Fluid contact body material:
Selectable from PP (polypropylene), aluminum or stainless steel
●Automatically operated type and air operated type are available
●Self-priming makes priming unnecessary
| Field | Value | Value Details |
|---|
| Products Complying With The ATEX Directive | - | None |
| Body Size | 5 | 1/2 Standard |
| Material of Body Wetted Areas | 2 | SCS14(Stainless Steel) |
| Diaphragm Material | 1 | PTFE |
| Actuation | 0 | Automatically Operated |
| Thread Type | F | G |
| Bore Size | 04 | 1/2" |
| Option | - | None |
| Made To Order | - | Standard |
