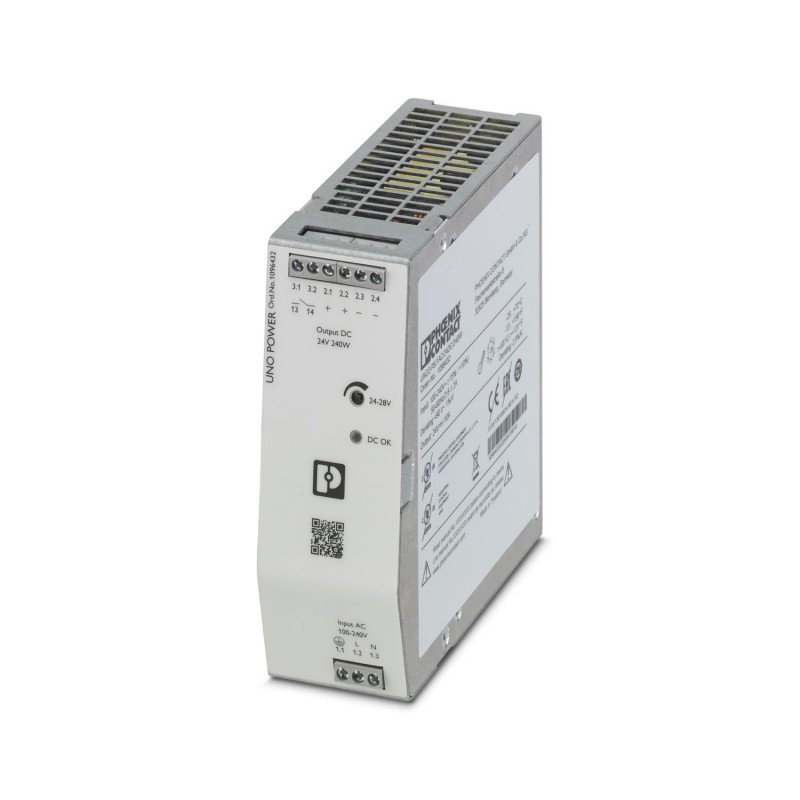

power supply UNO2-PS/1AC/24DC/240W

power supply UNO2-PS/1AC/24DC/240W
power supply UNO2-PS/1AC/24DC/240W
  • MODEL: UNO2-PS/1AC/24DC/240W
  • LEAD TIME: In stock
$106.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

Power system configuration星形网络 (TN，TT，IT (PE))
Rated input voltage range100 V AC ... 240 V AC
Input voltage range100 V AC ... 240 V AC -15 % ... +10 %
attenuation< 90 V AC (1 %/V)
Typical voltage of the national grid120 V AC
230 V AC
The voltage type of the supply voltageAND
Inrush currentTypical 10 A at 25 °C
Inrush Current Integral (I2t)< 0.2 A2s
Frequency range (fN)50 Hz ... 60 Hz ±10 %
Grid buffer time典型值 16 ms (120 V AC)
典型值 20 ms (230 V AC)
Power consumption2.6 A (100 V AC)
2.2 A (120 V AC)
1.13 A (230 V AC)
1.2 A (240 V AC)
Protection circuitsTransient surge protection; Varistors, gas discharge tubes
Pick-up time400 ms typical
Device power fuse5 A built-in (device protection) fast fuse
Recommended input protection circuit breakers6 A ... 16 A (特性B、C、D、K或类似)
PE discharge current

< 3.5 mA
