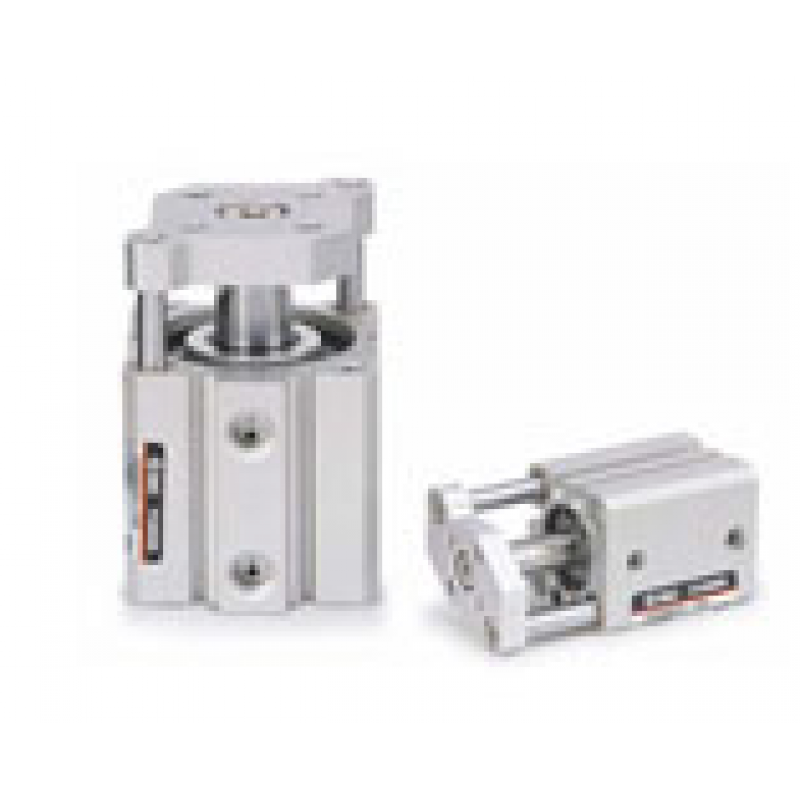

●Built-in guide rod in the CQS and CQ2 series compact cylinders
●Non-rotating accuracy: ±0.2° or less
●Lateral load resisting 2 to 4 times ∗ Compared to compact cylinder
Series CQ
●Load can be directly mounted
●Mounting dimensions compatible with the CQS and CQ2 series
●With auto switch (Series CDQM: CDQM)
| Field | Value | Value Details |
|---|
| With Auto Switch(Built-in Magnet) | - | Without Auto Switch |
| Mounting Style | B | Through-hole (Standard) |
| Bore Size | 32 | Bore Size 32 mm |
| Port Thread Type | TF | G |
| Cylinder Stroke | 10 | Standard Stroke 10 mm |
| Auto Switch | - | Without Auto Switch |
| Number Of Auto Switches | - | 2 pcs. Or None |
