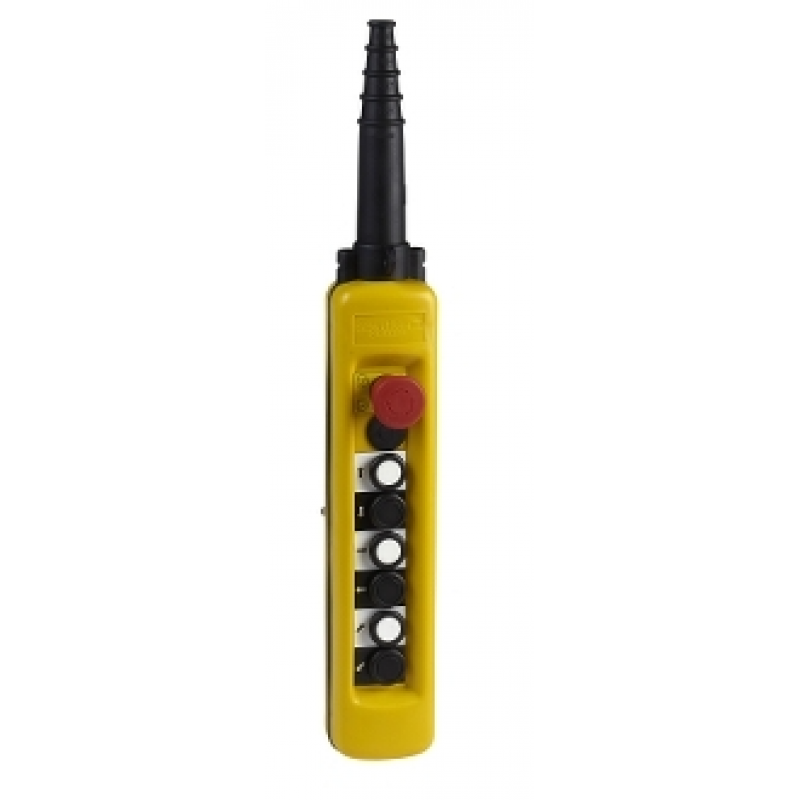

| Control station type | Double insulated |
|---|
| Enclosure material | Polypropylene |
|---|
| Electrical circuit type | Control circuit |
|---|
| Enclosure type | Complete ready for use |
|---|
| Control station application | Control of single speed hoist motor |
|---|
| Control station composition | 6 push-buttons + 1 emergency stop |
|---|
| Control button type | First push-button 1 NC + 1 NO raise, slow
Second push-button 1 NC + 1 NO lower, slow
Stop push-button Ø 40 mm 1 NC latching
Fourth push-button 1 NC + 1 NO left, slow
Third push-button 1 NC + 1 NO right, slow
Fifth push-button 1 NC + 1 NO forward slow
Sixth push-button 1 NC + 1 NO reverse, slow |
|---|
| Product compatibility | ZB2BE102 for emergency stop
ZB2BE102 + ZB2BE101 for each direction |
|---|
| Mechanical interlocking | With mechanical interlocking between pairs |
|---|
| Control station colour | Yellow |
|---|
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
|---|
| Standards | UL 508
EN/IEC 60947-5-1
EN/IEC 60204-32
CSA C22.2 No 14 |
|---|
| Product certifications | GOST
CCC |
|---|
| protective treatment | TH |
|---|
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
|---|
| ambient air temperature for storage | -40…158 °F (-40…70 °C) |
|---|
| Vibration resistance | 15 gn 10…500 Hz)IEC 60068-2-6 |
|---|
| Shock resistance | 100 gn IEC 60068-2-27 |
|---|
| Overvoltage category | Class II IEC 61140 |
|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
|---|
| IK degree of protection | IK08 conforming to EN 50102 |
|---|
| Mechanical durability | 1000000 cycles |
|---|
| Cable entry | Rubber sleeve with stepped entry 0.31…1.02 in (8…26 mm) |
|---|
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
|---|
| [Ithe] conventional enclosed thermal current | 10 A |
|---|
| [Ui] rated insulation voltage | 600 V 3) |
|---|
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
|---|
| Contact operation | Slow-break |
|---|
| Maximum resistance across terminals | 25 MOhm |
|---|
| Operating force | 13 N push-button
8 N emergency stop |
|---|
| Short-circuit protection | 10 A fuse protection cartridge gG |
|---|
| Rated operational power in W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C
48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C
65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
|---|
| Terminals description ISO n°1 | (13-14)NO
(11-12)NC |
|---|
| Terminals description ISO n°2 | (11-12)NC |
|---|
| Terminal identifier | (13-14)NO
(11-12)NC |
|---|
