| Product range | TeSys |
|---|

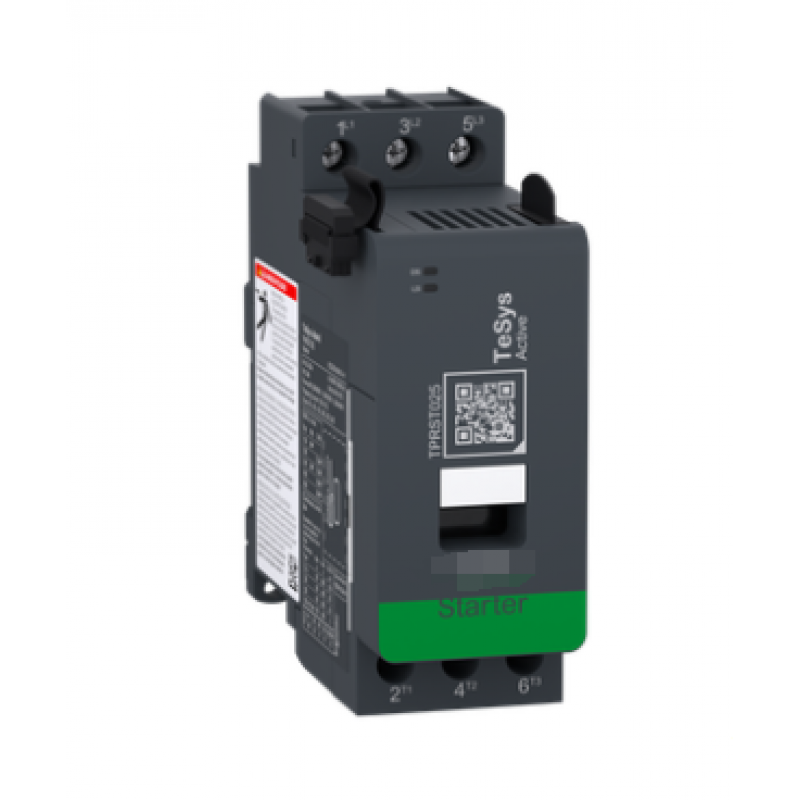

| Product name | TeSys island |
|---|
| Short name of the product | TPRST |
|---|
| Product type | Motor starters |
|---|
| Motor starter type | Direct line |
|---|
| Introduction to the device | Direct starter connected to an automation controller through a bus coupler
Operational only when connected to a bus coupler |
|---|
| Available features | Upstream voltage presence detection
Electrical line and load protection
Power and energy monitoring when connected with TPRVM voltage module |
|---|
| Scope of application | TPRBC bus coupler
TPRVM voltage interface module |
|---|
| Electrode description | 3P 3 NO |
|---|
| Use categories | AC-1
AC-2
AC-3
AC-4
AC-3e |
|---|
| Motor power (kW) | 5.5 kW when operating voltage<=230 V, 50 Hz (AC-3),
11 kW, when operating voltage<=380...415 V, 50 Hz (AC-3),
11 kW, when operating voltage<=440 V, 50 Hz (AC-3),
15 kW, when operating voltage<=500 V, 50 Hz (AC-3).
15 kW when operating voltage<=690 V 50 Hz (AC-3) |
|---|
| motor power HP (UL / CSA) | 2 hp when operating voltage<=120 V AC 60 Hz for 1-phase motors3
hp when operating voltage<=240 V AC 60 Hz for 1-phase motors
7.5 hp when operating voltage<=208 V AC 60 Hz for 3-phase motors
7.5 hp when operating voltage<=240 V AC 60 Hz for 3-phase motors
15 hp when operating voltage<=480 V AC 60 Hz for 3-phase motors
, 20 hp when operating voltage<=600 V AC 60 Hz for 3-phase motors |
|---|
| Rated operating voltage [UE] | <= 480 V AC 47...63 Hz for overvoltage cat. III
<= 690 V AC 47...63 Hz for overvoltage cat. II |
|---|
| Rated operating current [IE] | 25 A (at operating temperature <=50 °C) When operating voltage<=<= 440 V AC-3
30 A (when operating temperature <=50 °C) When operating voltage<=<= 440 V AC-1 |
|---|
| Conventional heating current [Ith] | 30 A (when operating temperature <=50 °C) |
|---|
| Rated insulation voltage [UI] | 690 V according to IEC 60947-4-1
600 V according to UL 60947-4-1
600 V according to DIN 3852-Y |
|---|
| Rated impulse withstand voltage [UIMP] | 6 kV according to IEC 60947-1 |
|---|
| Types of overvoltages | III for Ue < = 480 V
II for Ue < = 690 V |
|---|
| Thermal overload protection setting range | 0.5… 25 A |
|---|
| Heat-free tow buckle grade | Level 5... 30 |
|---|
| reposition | Remotely or automatically |
|---|
| Rated Continuity Capability [IRMS] | 450 A when operating at <=440 V according to IEC 60947 |
|---|
| Rated breaking capacity | 450 A when operating at <=440 V according to IEC 60947 |
|---|
| Rated short-time withstand current [ICW] | 380 A at operating temperature<=40 °C for 1 s
240 A for 10 s at operating temperature<=40 °C for 10 s
120 A for 1 minute
at <=40 °C for 50 A For 10 minutes at <=40 °C |
|---|
| Average impedance | 2 mΩ - Ith 30 A 50 Hz |
|---|
| Power consumption per pole | 1.25 W AC-3 - Ith 25 A
1.8 W AC-1 - Ith 30 A |
|---|
| Control Loop Voltage [Uc] | 24 V DC supplied by the bus coupler |
|---|
| Current consumption | 160 mA contactor sealed
160 mA contactor closing |
|---|
| Power consumption W | 6.6 W in Ie AC-3 |
|---|
